Humans#
© Ashraf Shazly
Recordings from:
Vanhove, M. (2024). Beja DoReCo dataset. In Seifart, F., Paschen, L., Stave, M. (eds.). Language Documentation Reference Corpus (DoReCo) 2.0. Lyon: Laboratoire Dynamique Du Langage (UMR5596, CNRS & Université Lyon 2). https://www.doi.org/10.34847/nkl.edd011t1
Setup#
[1]:
# import packages
import chatter
from pathlib import Path
[2]:
# set config parameters that depart from defaults
config = {
# spectrogram parameters
"fmin": 0,
"fmax": 5000,
# preprocessing parameters
"use_biodenoising": False,
"use_noisereduce": True,
"high_pass": 100,
"low_pass": 5000,
"threshold": 0.7,
"static": True,
"target_dbfs": -20,
"compressor_amount": -20,
"limiter_amount": -10,
# segmentation parameters
"simple_min_unit_length": 0.03,
"simple_max_unit_length": 0.18,
# other parameters
"plot_clip_duration": 10,
}
config = chatter.make_config(config)
# initialize the analyzer with the configuration
# using only 8 cores to avoid memory crash during segmentation
analyzer = chatter.Analyzer(config, n_jobs=8)
model = chatter.Trainer(config)
# set paths
input_dir = Path("/Volumes/Expansion/data/chatter/examples/beja/recordings/raw")
processed_dir = Path(
"/Volumes/Expansion/data/chatter/examples/beja/recordings/processed"
)
h5_path = Path("/Volumes/Expansion/data/chatter/examples/beja/spectrograms.h5")
csv_path = Path("/Volumes/Expansion/data/chatter/examples/beja/spectrograms.csv")
model_dir = Path("/Volumes/Expansion/data/chatter/examples/beja/model")
output_csv_path = Path("/Volumes/Expansion/data/chatter/examples/beja/output.csv")
segments = Path("/Volumes/Expansion/data/chatter/examples/beja/phoneme_boundaries.csv")
Using 8 cores for parallel processing
Initializing convolutional variational autoencoder
Using device: mps
Preprocessing#
[22]:

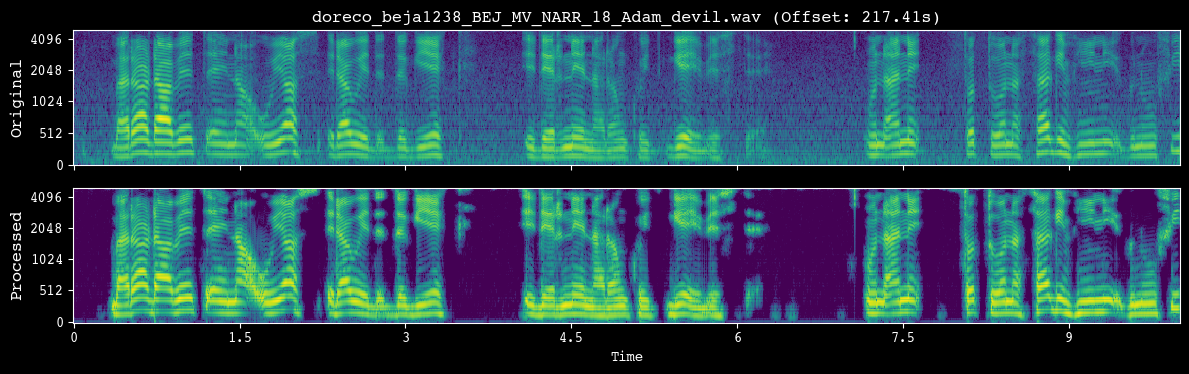

# demo the preprocessing pipeline
analyzer.demo_preprocessing(input_dir)
--- Demoing preprocessing for: doreco_beja1238_BEJ_MV_NARR_18_Adam_devil.wav ---
Segment: 217.41s - 227.41s
[3]:
# preprocess recordings
analyzer.preprocess_directory(input_dir=input_dir, processed_dir=processed_dir)
--- Found 58 audio files to preprocess ---
Preprocessing audio: 100%|██████████| 58/58 [01:07<00:00, 1.17s/it]
--- Preprocessing complete. Standardized WAV audio saved to /Volumes/Expansion/data/chatter/examples/beja/recordings/processed ---
Segmentation#
[6]:
# segment units and save spectrograms
unit_df = analyzer.segment_and_create_spectrograms(
processed_dir=processed_dir,
h5_path=h5_path,
csv_path=csv_path,
presegment_csv=segments,
)
--- Loading pre-segmented data from /Volumes/Expansion/data/chatter/examples/beja/phoneme_boundaries.csv ---
Generating pre-segmented spectrograms: 100%|██████████| 58/58 [00:58<00:00, 1.02s/it]
Warning: Skipped 3819 segments (4.9%) total.
- 3664 Segments (4.7%) exceeded 'simple_max_unit_length' (0.18s)
- 27 Segments (0.0%) were below 'simple_min_unit_length' (0.03s)
- 128 Segments (0.2%) were empty or invalid
--- Data preparation complete. Created records for 73957 units ---
Spectrograms saved to /Volumes/Expansion/data/chatter/examples/beja/spectrograms.h5
Unit metadata saved to /Volumes/Expansion/data/chatter/examples/beja/spectrograms.csv
Run model#
[5]:
# load segmented units
unit_df = analyzer.load_df(csv_path)
Attempting to load /Volumes/Expansion/data/chatter/examples/beja/spectrograms.csv...
--- Successfully loaded /Volumes/Expansion/data/chatter/examples/beja/spectrograms.csv ---
[8]:
# train ae
model.train_ae(unit_df=unit_df, h5_path=h5_path, model_dir=model_dir, subset=0.05)
--- Training on a random subset of 3697 units (5.0%) ---
Starting training for 100 epochs using 4 DataLoader workers...
Training model: 100%|██████████| 100/100 [14:51<00:00, 8.92s/it, loss=1508.1527]
--- Training complete. Model saved to /Volumes/Expansion/data/chatter/examples/beja/model/model.pth ---
Loss history saved to /Volumes/Expansion/data/chatter/examples/beja/model/loss.csv
[3]:
# load trained vae
model = chatter.Trainer.from_trained(config, model_dir)
Instantiating Trainer from pre-trained model at /Volumes/Expansion/data/chatter/examples/beja/model...
Initializing convolutional variational autoencoder
Using device: mps
Successfully loaded pre-trained model from /Volumes/Expansion/data/chatter/examples/beja/model/model.pth
[7]:

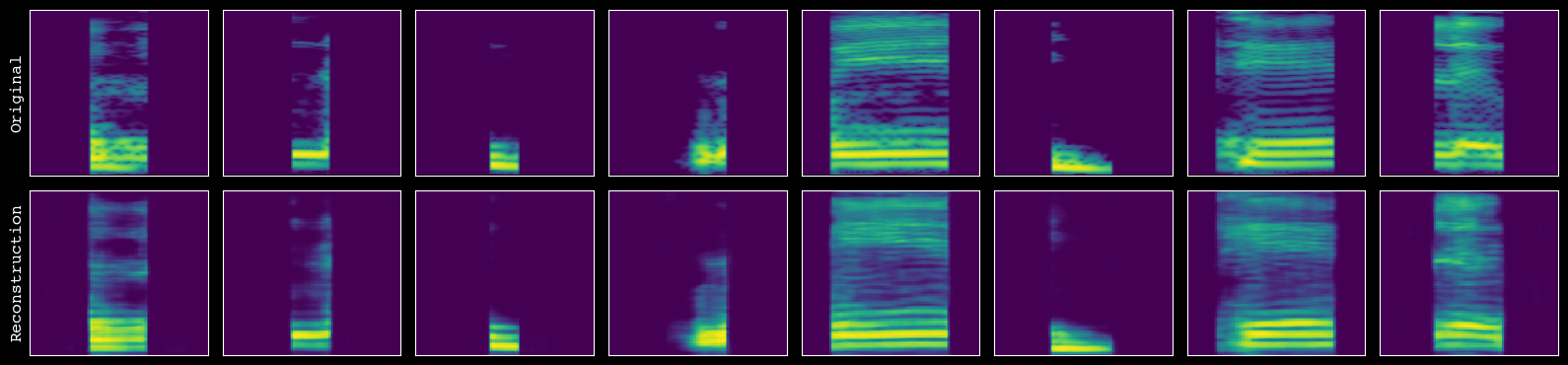

# assess the quality of reconstruction
model.plot_reconstructions(unit_df=unit_df, h5_path=h5_path)
[8]:
# export the latent features
output = model.extract_and_save_features(
unit_df=unit_df,
h5_path=h5_path,
model_dir=model_dir,
output_csv_path=output_csv_path,
)
--- Starting feature extraction ---
Successfully loaded pre-trained model from /Volumes/Expansion/data/chatter/examples/beja/model/model.pth
Extracting features: 100%|██████████| 1156/1156 [00:59<00:00, 19.35it/s]
--- Pipeline complete. Exported data for 73957 units to /Volumes/Expansion/data/chatter/examples/beja/output.csv ---
Postprocessing#
[9]:
# load in latent features
output = chatter.FeatureProcessor(analyzer.load_df(output_csv_path), config)
Attempting to load /Volumes/Expansion/data/chatter/examples/beja/output.csv...
--- Successfully loaded /Volumes/Expansion/data/chatter/examples/beja/output.csv ---
[10]:
# process output and save
output.run_pacmap()
output.df.to_csv(output_csv_path, index=False)
--- Running PaCMAP dimensionality reduction ---
--- PaCMAP complete ---
[13]:

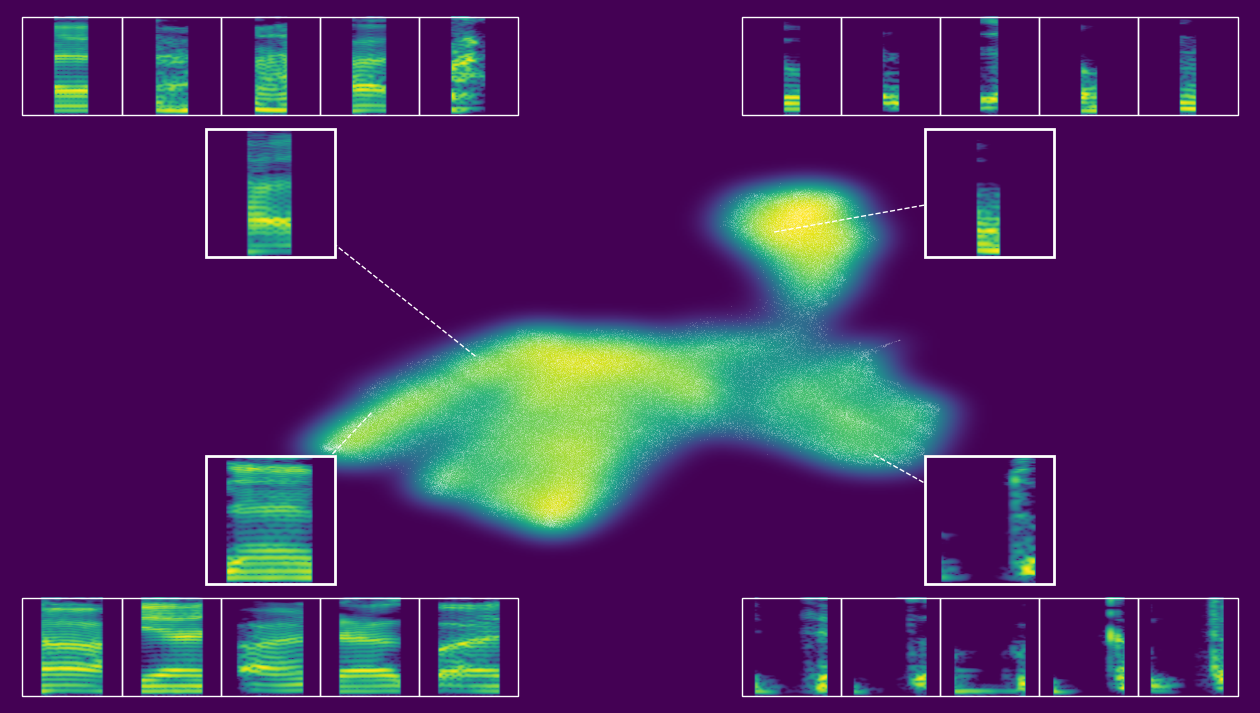

# create interactive or static plot
output.static_embedding_plot(
h5_path=h5_path,
seed=1,
focal_quantile=0.6,
point_size=0.1,
point_alpha=1,
margin=0.01,
zoom_padding=0.5,
num_neighbors=5,
)
--- Automatically selecting focal points from quadrants with seed 1 ---
--- Finding nearest neighbors ---
--- Creating the plot ---
--- Plotting density background (using fast 2d histogram) ---
--- Calculating callout positions and adding spectrograms ---
--- Displaying plot ---
[13]:
<chatter.features.FeatureProcessor at 0x372e7f4d0>
