Humpback whales#
© Marine Mammal Center
Recordings from:
Monterey Bay Aquarium Research Institute (2018). Free Sound. https://www.freesound.org/people/MBARI_MARS/sounds/403406/
Setup#
[1]:
# import packages
import chatter
from pathlib import Path
[2]:
# set config parameters that depart from defaults
config = {
# spectrogram parameters
"fmin": 0,
"fmax": 5000,
# preprocessing parameters
"use_biodenoising": True,
"use_noisereduce": True,
"static": False,
"target_dbfs": -20,
"compressor_amount": -20,
"limiter_amount": -10,
# simple segmentation parameters
"simple_noise_floor": -60,
"simple_silence_threshold_db": -60,
"simple_min_silence_length": 0.1,
"simple_max_unit_length": 3.5,
"simple_min_unit_length": 0.2,
# other parameters
"plot_clip_duration": 40,
}
config = chatter.make_config(config)
# initialize the analyzer with the configuration
# using only 8 cores to avoid memory crash during segmentation
analyzer = chatter.Analyzer(config, n_jobs=8)
model = chatter.Trainer(config)
# set paths
input_dir = Path(
"/Volumes/Expansion/data/chatter/examples/humpback_whale/recordings/mbari_mars"
)
processed_dir = Path(
"/Volumes/Expansion/data/chatter/examples/humpback_whale/recordings/processed"
)
h5_path = Path(
"/Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.h5"
)
csv_path = Path(
"/Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.csv"
)
model_dir = Path("/Volumes/Expansion/data/chatter/examples/humpback_whale/model")
output_csv_path = Path(
"/Volumes/Expansion/data/chatter/examples/humpback_whale/output.csv"
)
Using 8 cores for parallel processing
Initializing convolutional variational autoencoder
Using device: mps
Preprocessing#
[8]:

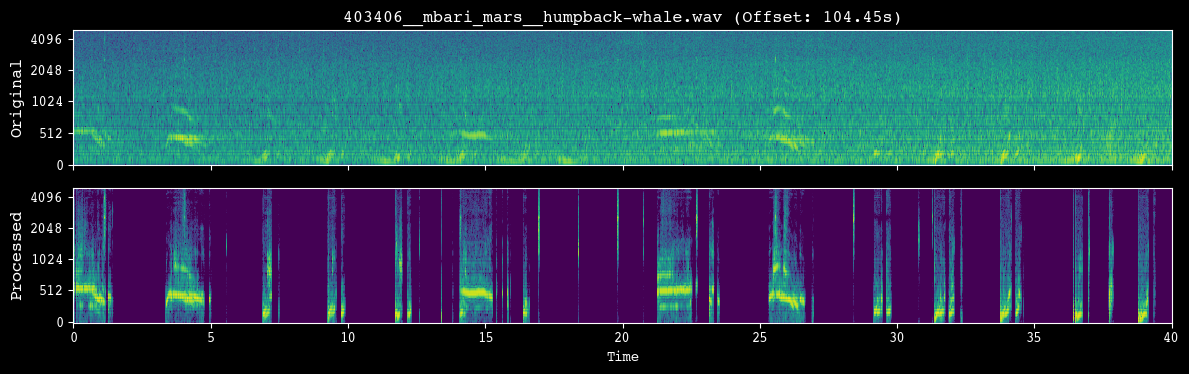

# demo the preprocessing pipeline
analyzer.demo_preprocessing(input_dir)
--- Demoing preprocessing for: 403406__mbari_mars__humpback-whale.wav ---
Segment: 104.45s - 144.45s
[3]:
# preprocess recordings
analyzer.preprocess_directory(input_dir=input_dir, processed_dir=processed_dir)
--- Found 1 audio files to preprocess ---
Preprocessing audio: 100%|██████████| 1/1 [02:14<00:00, 134.57s/it]
--- Preprocessing complete. Standardized WAV audio saved to /Volumes/Expansion/data/chatter/examples/humpback_whale/recordings/processed ---
Segmentation#
[12]:

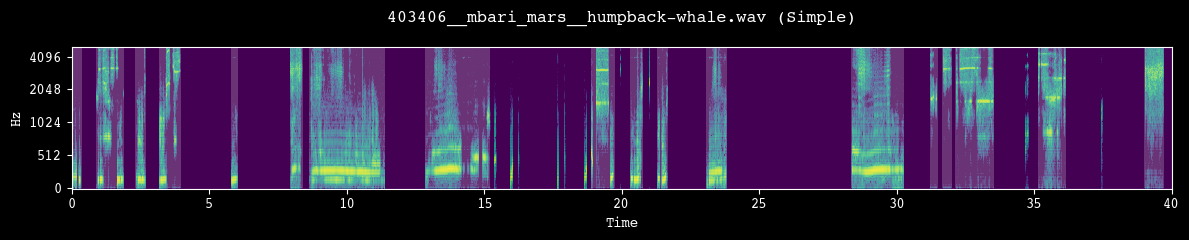

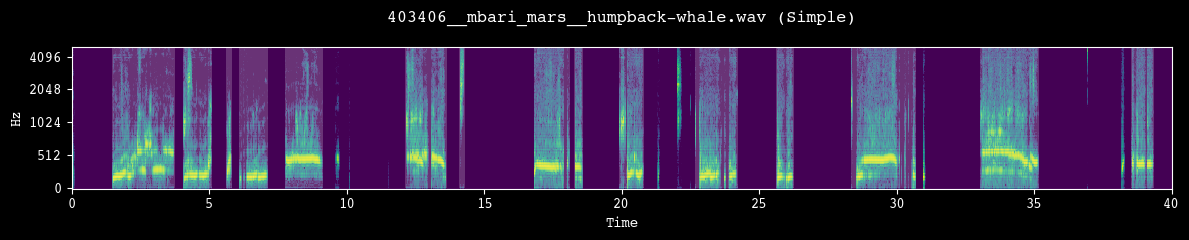

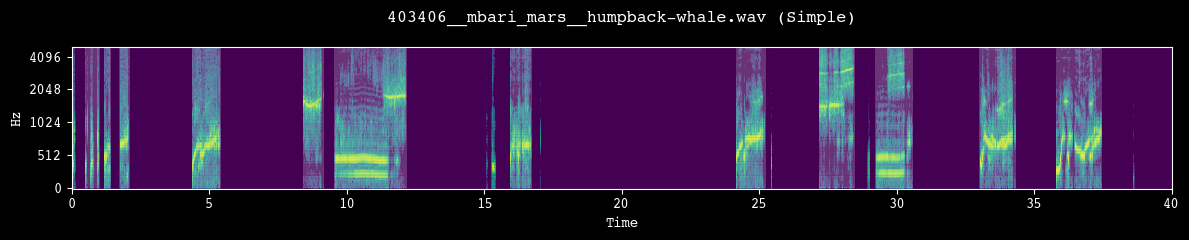

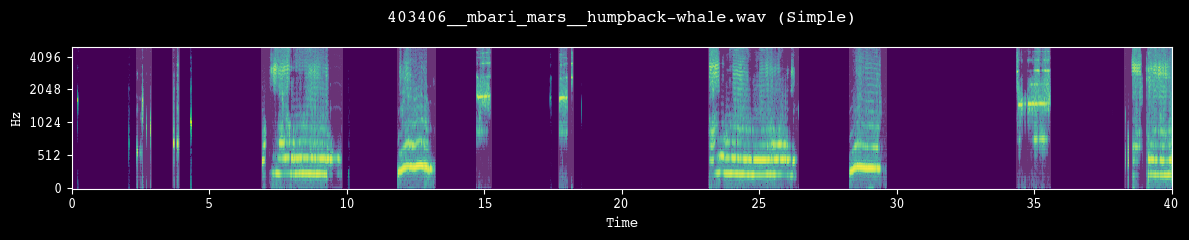

# preview the segmentation pipeline
analyzer.demo_segmentation(input_dir=processed_dir, simple=True)
analyzer.demo_segmentation(input_dir=processed_dir, simple=True)
analyzer.demo_segmentation(input_dir=processed_dir, simple=True)
analyzer.demo_segmentation(input_dir=processed_dir, simple=True)
--- Demoing segmentation for: 403406__mbari_mars__humpback-whale.wav ---
Segment: 1968.03s - 2008.03s
--- Demoing segmentation for: 403406__mbari_mars__humpback-whale.wav ---
Segment: 2029.44s - 2069.44s
--- Demoing segmentation for: 403406__mbari_mars__humpback-whale.wav ---
Segment: 6498.21s - 6538.21s
--- Demoing segmentation for: 403406__mbari_mars__humpback-whale.wav ---
Segment: 3775.94s - 3815.94s
[4]:
# segment units and save spectrograms
unit_df = analyzer.segment_and_create_spectrograms(
processed_dir=processed_dir, h5_path=h5_path, csv_path=csv_path, simple=True
)
--- Found 1 files to segment using simple (amplitude-based) method ---
Segmenting and saving spectrograms: 100%|██████████| 1/1 [00:34<00:00, 34.22s/it]
--- Data preparation complete. Created records for 2689 units ---
Spectrograms saved to /Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.h5
Unit metadata saved to /Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.csv
Run model#
[5]:
# load segmented units
unit_df = analyzer.load_df(csv_path)
Attempting to load /Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.csv...
--- Successfully loaded /Volumes/Expansion/data/chatter/examples/humpback_whale/spectrograms.csv ---
[6]:
# train ae
model.train_ae(unit_df=unit_df, h5_path=h5_path, model_dir=model_dir, subset=0.5)
--- Training on a random subset of 1344 units (50.0%) ---
Starting training for 100 epochs using 4 DataLoader workers...
Training model: 100%|██████████| 100/100 [04:53<00:00, 2.94s/it, loss=686.5163]
--- Training complete. Model saved to /Volumes/Expansion/data/chatter/examples/humpback_whale/model/model.pth ---
Loss history saved to /Volumes/Expansion/data/chatter/examples/humpback_whale/model/loss.csv
[7]:
# load trained vae
model = chatter.Trainer.from_trained(config, model_dir)
Instantiating Trainer from pre-trained model at /Volumes/Expansion/data/chatter/examples/humpback_whale/model...
Initializing convolutional variational autoencoder
Using device: mps
Successfully loaded pre-trained model from /Volumes/Expansion/data/chatter/examples/humpback_whale/model/model.pth
[8]:

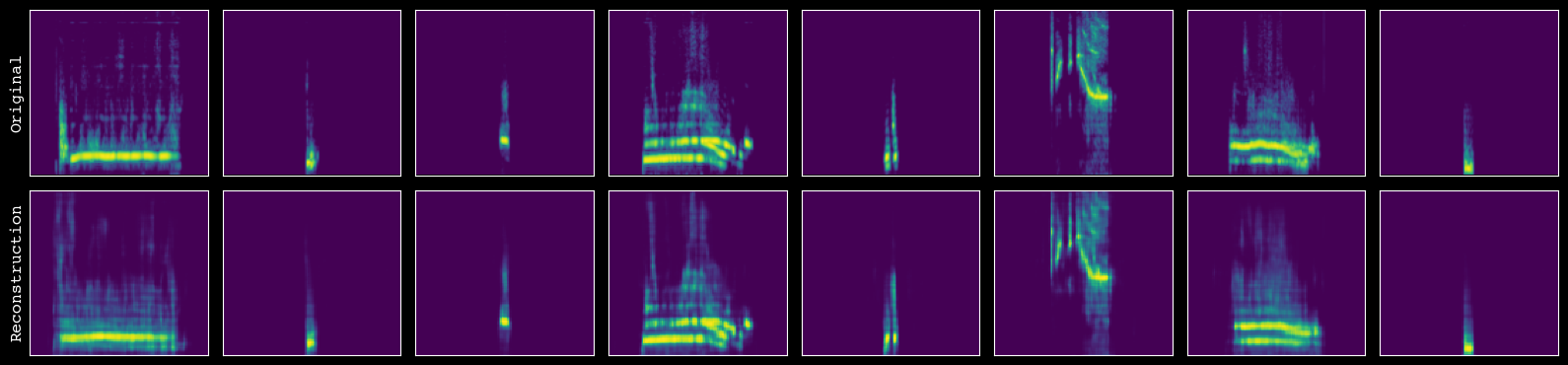

# assess the quality of reconstruction
model.plot_reconstructions(unit_df=unit_df, h5_path=h5_path)
[9]:
# export the latent features
output = model.extract_and_save_features(
unit_df=unit_df,
h5_path=h5_path,
model_dir=model_dir,
output_csv_path=output_csv_path,
)
--- Starting feature extraction ---
Successfully loaded pre-trained model from /Volumes/Expansion/data/chatter/examples/humpback_whale/model/model.pth
Extracting features: 100%|██████████| 43/43 [00:06<00:00, 7.00it/s]
--- Pipeline complete. Exported data for 2689 units to /Volumes/Expansion/data/chatter/examples/humpback_whale/output.csv ---
Postprocessing#
[10]:
# load in latent features
output = chatter.FeatureProcessor(analyzer.load_df(output_csv_path), config)
Attempting to load /Volumes/Expansion/data/chatter/examples/humpback_whale/output.csv...
--- Successfully loaded /Volumes/Expansion/data/chatter/examples/humpback_whale/output.csv ---
[11]:
# process output and save
output.run_pacmap()
output.df.to_csv(output_csv_path, index=False)
--- Running PaCMAP dimensionality reduction ---
--- PaCMAP complete ---
[17]:

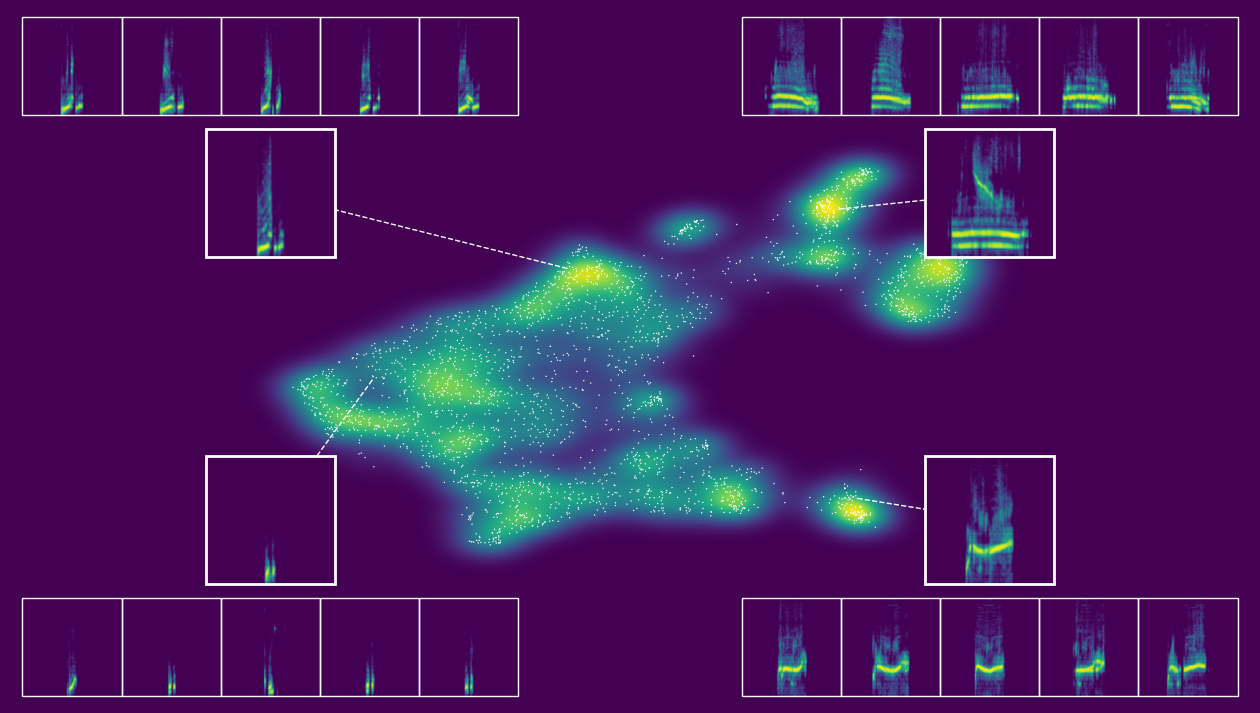

# create interactive or static plot
output.static_embedding_plot(
h5_path=h5_path,
seed=11111,
focal_quantile=0.5,
point_size=1,
point_alpha=1,
margin=0.01,
zoom_padding=0.42,
num_neighbors=5,
)
--- Automatically selecting focal points from quadrants with seed 11111 ---
--- Finding nearest neighbors ---
--- Creating the plot ---
--- Plotting density background (using fast 2d histogram) ---
--- Calculating callout positions and adding spectrograms ---
--- Displaying plot ---
[17]:
<chatter.features.FeatureProcessor at 0x33900c050>
